Brief Introduction of Permanent magnet servo motor

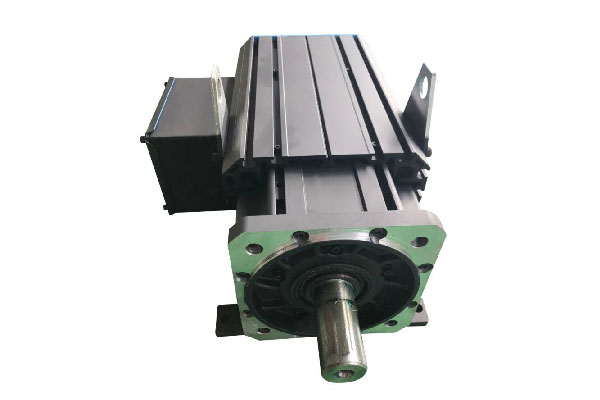

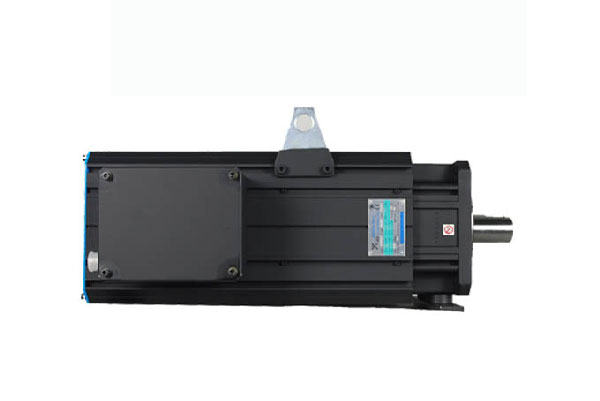

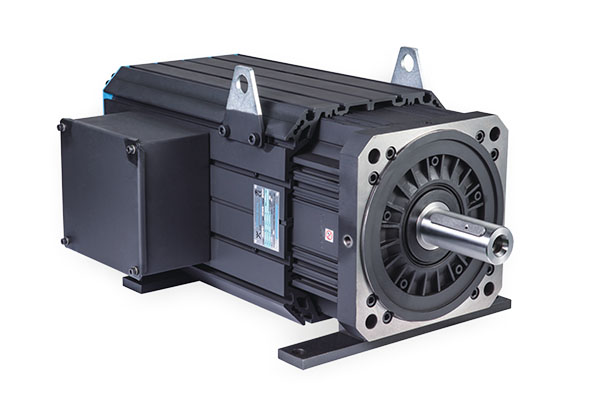

XingTai Permanent magnet Servo Motor is RE Permanent magnet synchronous servo motor was conceived and designed as an advanced and homogeneous range of high performance servo actuators, in line with the evolving demands of the automation industry, and is particularly suited for direct drive applications.

XingTai Permanent magnet Servo Motor reach the highest torque/size and power/size ratios in the industry, they are designed with Rotating transformer encoder, as standard feedback devices, optional or inductive encoders, custom designed for motor operation, which offer absolute resolution up to 8 million points/rev thus affording the best motion uniformity even at the lowest speed, or multiturn absolute encodes, all with serial Endat interface and electronic nameplate, with this features, the limits of mechanical transmissions are overcome and a vast range of applications can be transferred to direct drive technology.

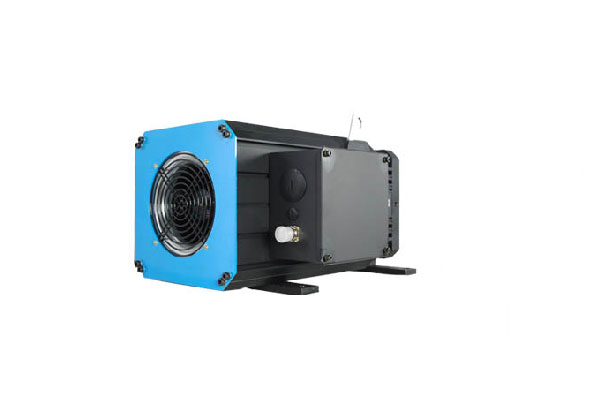

XingTai Permanent magnet Servo Motor Designed for process lines and apply in sustained operation at high speed, forced cooling over the frame with fan servo controlled by the motor, overall protection grade IP 54;

The advantage of combination of permanent magnet and Magnetic reluctance are:

1.10% higher efficiency than induction motor;

2. wider speed range compared to general permanent magnet motor;

3. Slender structure make a motor faster dynamic response, lower noise;

4. Special air duct design make the motor more outstanding cooling effect.

The products are widely used in the hydraulic servo industry, air compressor industry, packaging and printing industry, machine tool industry and other industrial control fields, especially injection molding machines. Xingtai Servo motor has passed CE, UL certificates.

The main characteristics of the Xingtai Motor are as follows:

1. Rated torque: 20-600Nm

2. Peak torque：40-1500Nm

3. Peak speed: up to 16000rpm

4. Cooling Mode: Natural Cooling, Wind Cooling, water cooling, Oil Cooling

5. Insulation Class: F

6. Protection: IP65(Natural Cooling, water cooling, oil cooling), IP 54(Wind Cooling)

7. Brake: D10-D13 series motor can be equipped with permanent magnet brake according to customer's request; Electromagnetic brakes can be installed in D10 series, D13 series and D18 series

8. Support for various forms of position sensors, including:
1) Absolute encoders, based on the single-loop, multi-loop absolute encoders of Hydehan Endat 2.2, also support sick, Domochuan, Nikon, etc.
2) Incremental encoder, mainly Danah
3) Positive cosine encoder, Hyderham Ern 1385, Ern 1387
4) Various of Rotating transformers, such as Domogawa rotating transformer.

9. Temperature protection: Standard Motor preburied a set of 3 PTC 130 and a set of KTY84 thermistors

XingTai Permanent magnet Servo Motor Specification Name rules
