HVLS Ceiling Fan

Our patented high - volume, low - speed (HVLS) fan technology is radically different from others:

This HVLS industrial ceiling fan is independently developed and produced by our company, XINGTAI. It is equipped with a Permanent Magnet Direct Drive Motor and a Servo Controller, and has a specially designed temperature - control function. The Servo Controller ensures that the motor temperature rise does not exceed 20°C. Once the motor temperature is higher than the set value, the controller will automatically slow down the motor speed. When the motor cools down, it will return to the set speed.

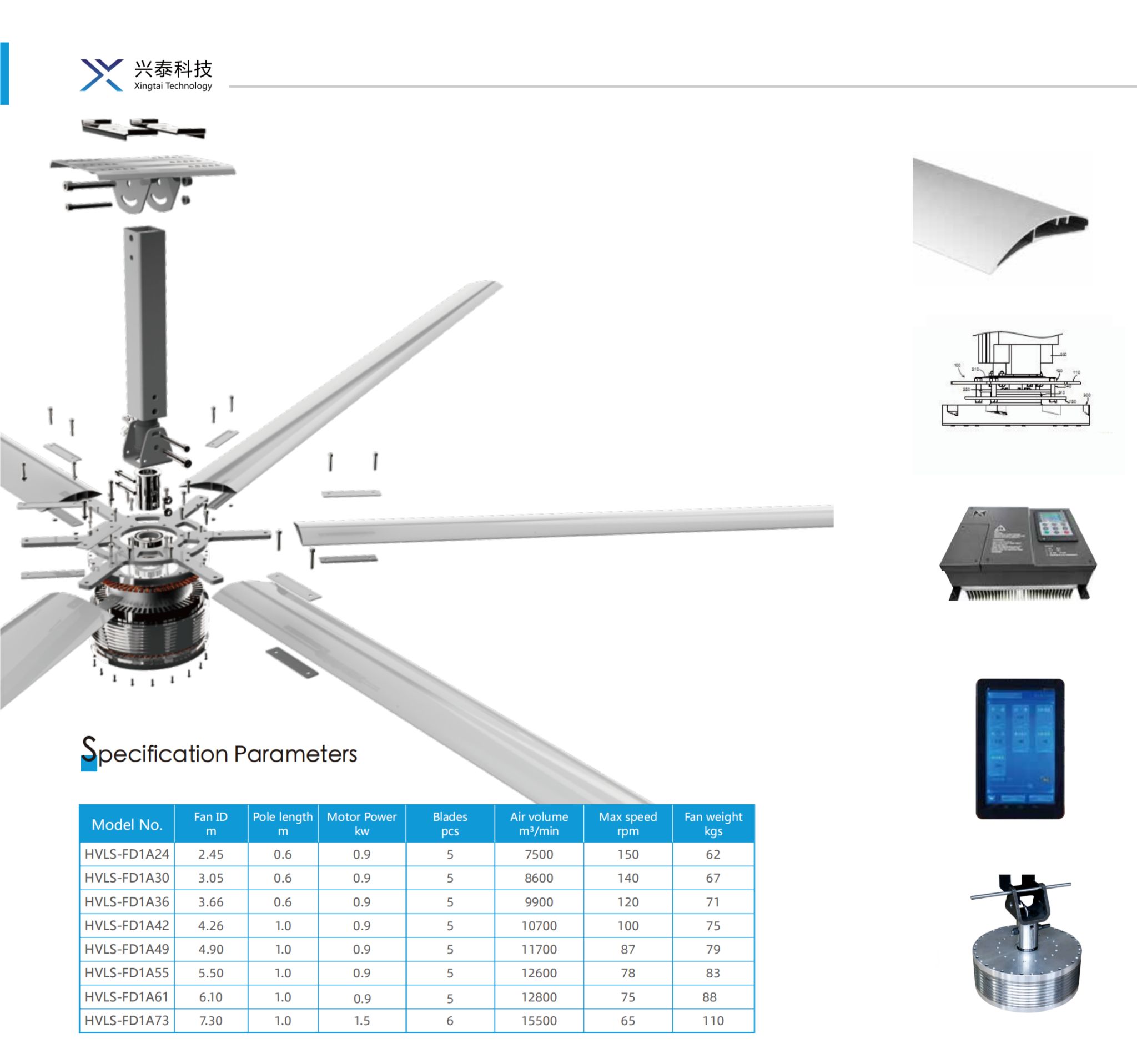

Product Features:

1. Large size: The fan diameter ranges from 4.9m - 7.3m (16ft - 24ft).

2. High - torque, low - speed Permanent Magnet Direct Drive Servo Motor with no maintenance required:

• For 20 - 24ft HVLS fans, a 1500w PMSM (Permanent Magnet Synchronous Motor) is used.

• For 12 - 20ft HVLS fans, a 900w PMSM(Permanent Magnet Synchronous Motor) is used.

3. 24ft HVLS Fan:

• High - volume area coverage, up to 1500 - 2000m².Best choice for 10m higher space.

• The maximum speed can reach 65rpm (380v).

• Light wight 110kgs(without pole and mounting parts weight)

4. Special function: Motor temperature control.

5. Central Controller: The touch - screen central controller can control up to 20 fans in an area.
