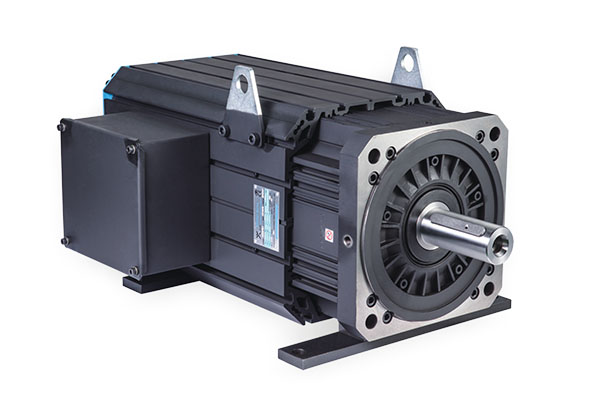

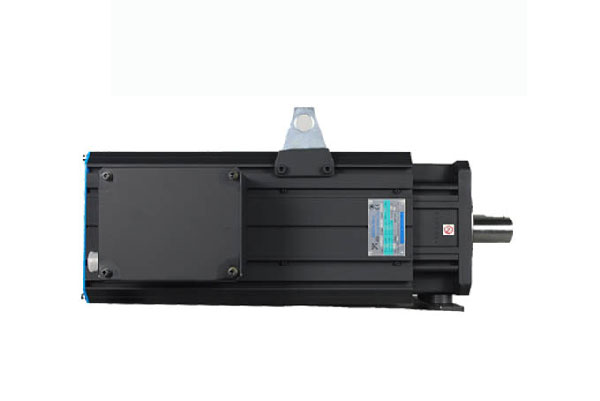

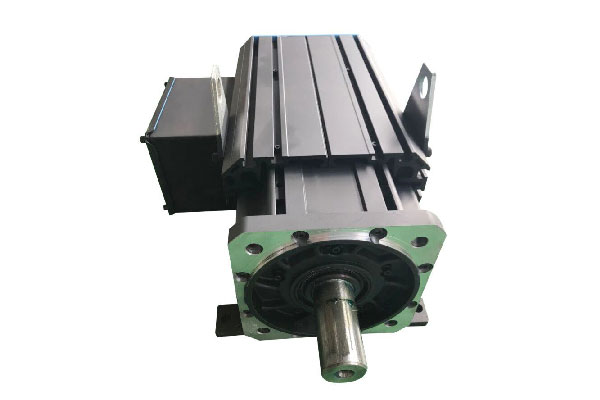

74-87Nm Servo Motor D1007

Ac Brushless Servo Motor, brushless Electric Motor, Servo Motor 18kw

Get a Quote Now

Description

Reviews

Brief Introduction of Ac brushless electric servo motor

Xingtai Ac permanent magnet brushless electric servo motor is a kind of advanced high performance Servo actuator, which can meet the needs of automatic industrial process motion control.

XingTai Servo Motor reach the highest torque/size and power/size ratios in the industry, they are designed with Rotating transformer encoder, as standard feedback devices, optional or inductive encoders, custom designed for motor operation, which offer absolute resolution up to 8 million points/rev thus affording the best motion uniformity even at the lowest speed, or multiturn absolute encodes, all with serial Endat interface and electronic nameplate, with this features, the limits of mechanical transmissions are overcome and a vast range of applications can be transferred to direct drive technology.

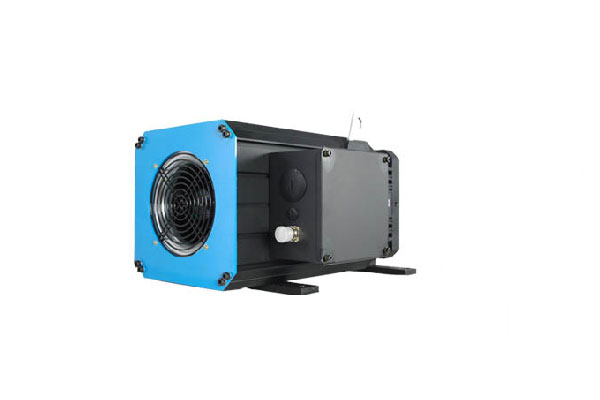

XingTai electric servo motor Designed for process lines and apply in sustained operation at high speed, forced cooling over the frame with fan servo controlled by the motor, overall protection grade IP 54;

The advantage of combination of permanent magnet and Magnetic reluctance are:

1.10% higher efficiency than induction motor;

2. wider speed range compared to general permanent magnet motor;

3. Slender structure make a motor faster dynamic response, lower noise;

4. Special air duct design make the motor more outstanding cooling effect.

The products are widely used in the hydraulic servo industry, air compressor industry, packaging and printing industry, machine tool industry and other industrial control fields, especially injection molding machines. Xingtai Servo motor has passed CE, UL certificates.

The main characteristics of the Xingtai Motor D1007 are as follows:

1. Rated torque: 74-87Nm | Rated Power 11.6kw,14kw,18.2kw

2. Peak speed: up to 16000rpm | Rated Speed: 1500rpm-2500rpm

3. Cooling Mode: Natural Cooling, Wind Cooling, water cooling, Oil Cooling

4. Insulation Class: F

5. Protection: IP65(Natural Cooling, water cooling, oil cooling), IP 54(Wind Cooling)

6. Brake: D10 series motor can be equipped with permanent magnet brake according to customer's request; Electromagnetic brakes can be installed in D10 series

7. Support for various forms of position sensors, including:

1) Absolute encoders, based on the single-loop, multi-loop absolute encoders of Hydehan Endat 2.2, also support sick, Domochuan, Nikon, etc.

2) Incremental encoder, mainly Danah

3) Positive cosine encoder, Hyderham Ern 1385, Ern 1387

4) Various of Rotating transformers, such as Domogawa rotating transformers.

8. Temperature protection: Standard Motor pre buried a set of 3 PTC 130 and a set of KTY84 thermistors

XingTai Ac Servo Motor Specification Name rules
