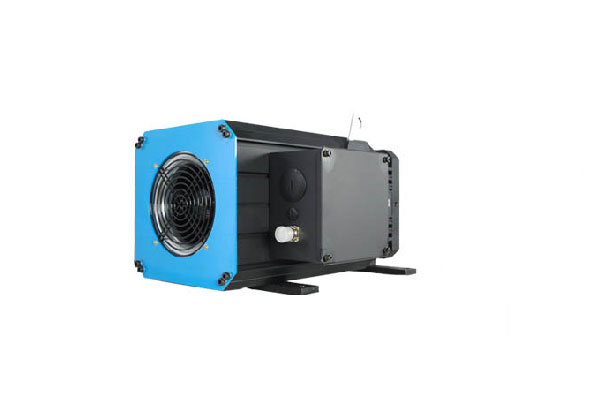

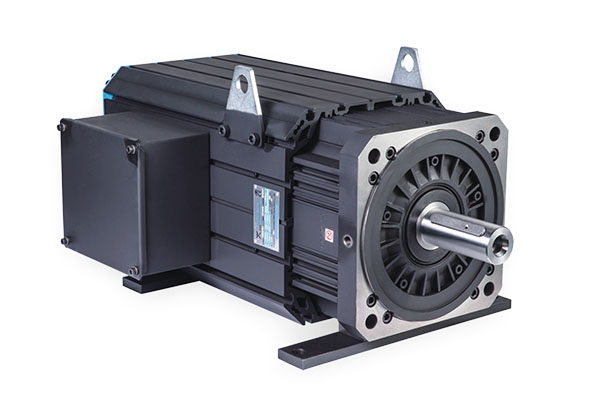

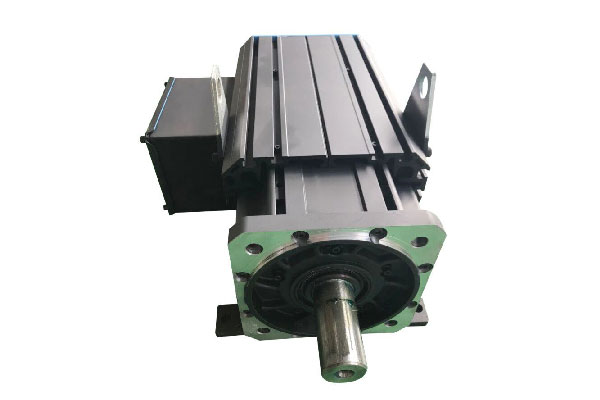

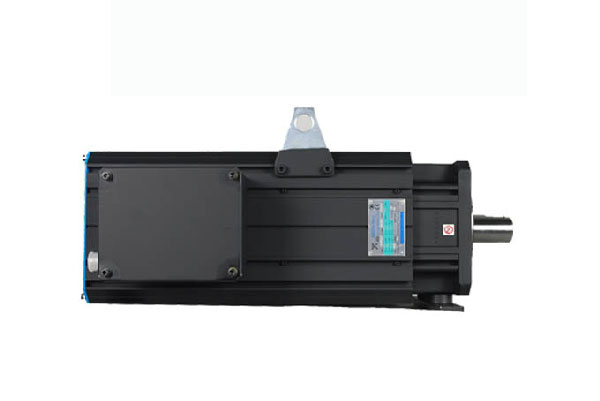

191-196Nm Servo Motor D1315

Servo Motor And Gear Pump, Electric Servo Motor 45kw, Servo Motor 1800rpm
191-196Nm Servo Motor D1315
191-196Nm Servo Motor D1315
191-196Nm Servo Motor D1315
191-196Nm Servo Motor D1315
191-196Nm Servo Motor D1315

Description

Reviews

Brief Introduction of 45 kw servo motor

XingTai Servo Motor was conceived and designed as an advanced and homogeneous range of high performance servo actuators, in line with the evolving demands of the automation industry, and is particularly suited for direct drive applications.

Based on the latest generation of rare-earth permanent magnet materials, combined with more than 10 years of servo motor design experience and advanced design methods, use a number of proprietary manufacturing technology, so that the motor has a higher torque volume ratio and power volume ratio. Motor rotation inertia is small, especially suitable for applications requiring a high dynamic response.

The products are widely used in the hydraulic servo industry, air compressor industry, packaging and printing industry, machine tool industry and other industrial control fields, especially injection molding machines. Xingtai Servo motor has passed CE, UL certificates.

XingTai permanent magnet servo motor Designed for process lines and apply in sustained operation at high speed, forced cooling over the frame with fan servo controlled by the motor, overall protection grade IP 54;

The advantage of a combination of permanent magnet and Magnetic reluctance are:

1.10% higher efficiency than induction motor;
2. wider speed range compared to general permanent magnet motor;
3.Slender structure make a motor faster dynamic response, lower noise;
4. Special air duct design make the motor more outstanding cooling effect.

The main characteristics of the Xingtai Motor D1315 are as follows:

1. Rated torque: 191-196Nm  | Rated Power 31kw,36kw,39kw,43kw

2. Peak speed: up to 16000rpm | Rated Speed:1500rpm-2000rpm

3. Cooling Mode: Natural Cooling, Wind Cooling, water cooling, Oil Cooling

4. Insulation Class: F

5. Protection: IP65(Natural Cooling, water cooling, oil cooling), IP 54(Wind Cooling)

6. Brake: D13 series motor can be equipped with permanent magnet brake according to customer's request; Electromagnetic brakes can be installed in D13 series

7. Support for various forms of position sensors, including:
1) Absolute encoders, based on the single-loop, multi-loop absolute encoders of Hydehan Endat 2.2, also support sick, Domochuan, Nikon, etc.
2) Incremental encoder, mainly Danah
3) Positive cosine encoder, Hyderham Ern 1385, Ern 1387
4) Various of Rotating transformers, such as Domogawa rotating transformer.

8. Temperature protection: Standard Motor pre buried a set of 3 PTC 130 and a set of KTY84 thermistors


XingTai Servo Motor Specification Name rules
For example: D1004F.15.3 means D10 Series(overall size refer to D10), 40Nm, 1500rpm, 380Vac.

XingTai Servo Motor Specification Sheet


XingTai Servo Motor Dimension
